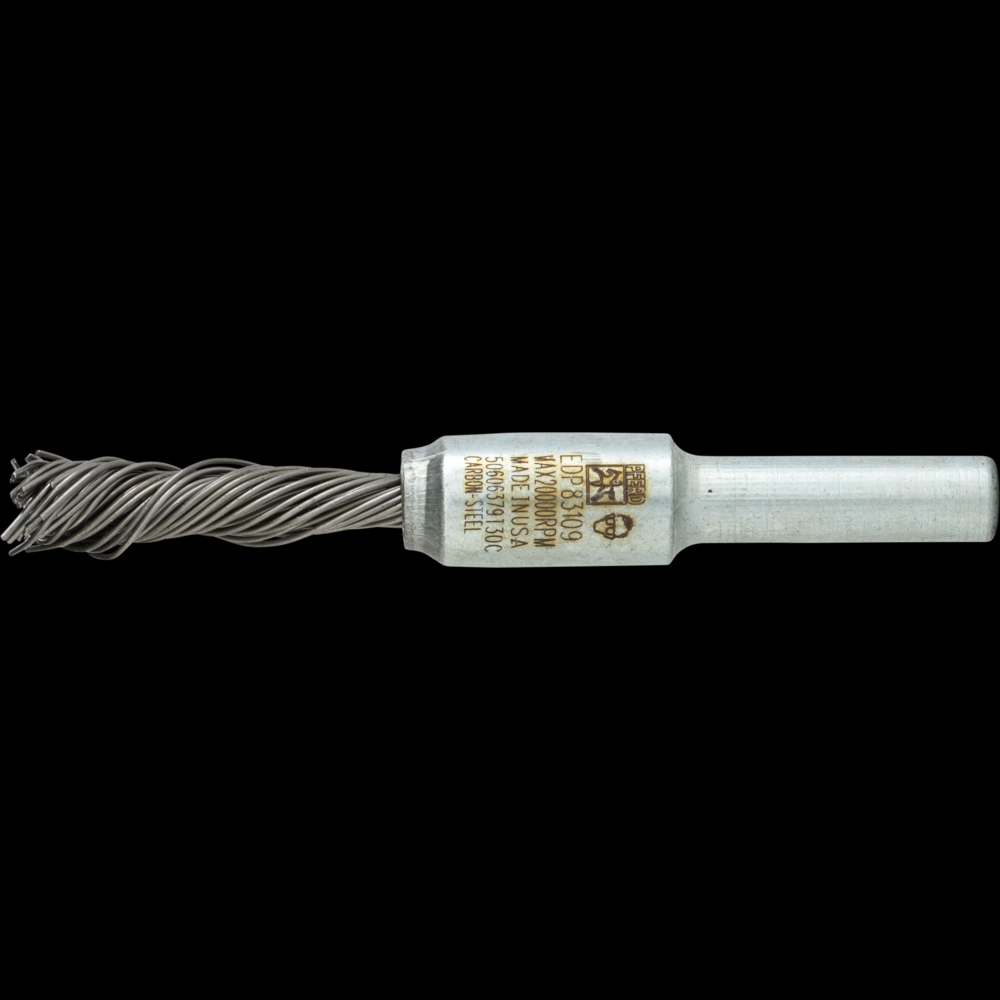

PFERD SINGLETWIST® Knot End Brush 1/4" Dia. Flared Cup .020 Carbon Steel 1/4" Shank

PFERD SINGLETWIST® Knot End Brush 1/4" Dia. Flared Cup .020 Carbon Steel 1/4" Shank by Pferd Inc.

  • Part Number: 79183109
  • UPC:
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Particularly flexible single-knot brush for special applications. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Abrasive Wheels, Discs and Brushes
Industrial Subtype:
Abrasive Brushes
Category Level 4:
End Brushes
Applications:
Cleaning
Applications 1:
Deburring
Applications 2:
Derusting
Applications 3:
Descaling
Applications 4:
Removing oxide layers
Applications 5:
Paint stripping
Applications 6:
Root seam processing
Applications 7:
Work on weld seams
Applications 8:
Work on fillet welds
Country of Origin:
US
Diameter Cup (In):
0.38
Diameter External (In):
0.25
Diameter Filament Material (In):
0.02
Diameter Shank:
1/4 Inch
Drive Types:
Flexible shaft drive
Drive Types 1:
Power drill
Drive Types 2:
Straight grinder
EDP:
83109
Filament Material:
Steel wire (ST)
Item Quantity:
1
Item Weight (kgs):
0.018
MANUFACTURER_TYPE_DESCR:
1/4" SGL KT END BRUSH .020CS 1/4" SHK
Materials that can be worked:
Cast iron
Materials that can be worked 1:
Cast steel
Materials that can be worked 2:
Steel, cast steel
Materials that can be worked 3:
Steel materials with a hardness > 54 HRC
Materials that can be worked 4:
Steels up to 370 HV (< 38 HRC)
Mounting System:
Shank
Number Of Knots:
1
Optimum RPM:
2500 - 10000 RPM
Order Quanityt:
30
Packaging:
Industrial packaging
Prop 65:
View
Recommendations for use:
Please observe the recommended rotational speeds.
Recommendations for use 1:
For best performance, use on variable speed angle grinders.
Recommendations for use 2:
For best performance, use a power tool with a minimum output of 300 watts.
Safety notes:
When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
Trim Length (In):
1.13
UNSPNC:
27111907
Manufactured By:
Pferd Inc.
Other Details
Long service life through use of PFERD special wire.
Optimal access to hard-to-reach areas such as inside corners, as the knot is less likely to unravel.
