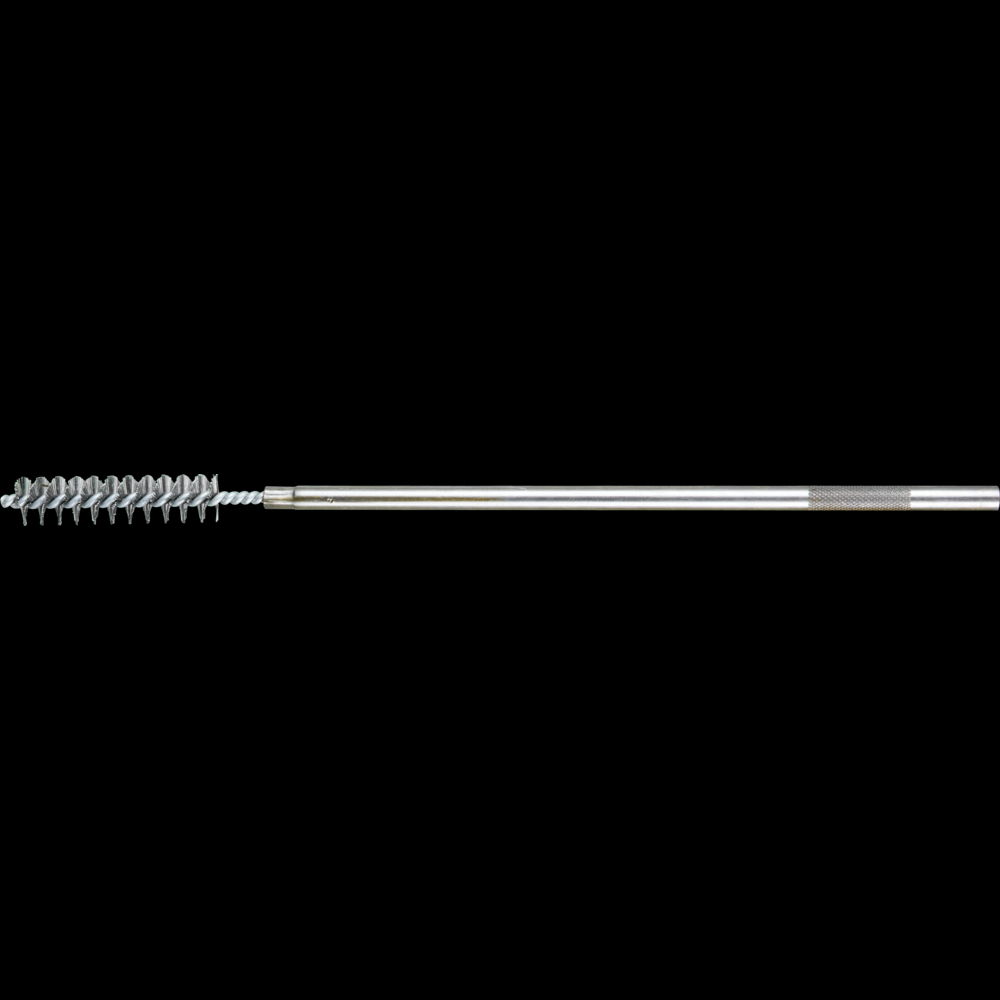

![PFERD Valve Guide Brush 1/2" Dia. .010 Carbon Steel 2" Brush Length](/vendors/6924/large/79183470-rgb.png "PFERD Valve Guide Brush 1/2" Dia. .010 Carbon Steel 2" Brush Length")
PFERD Valve Guide Brush 1/2" Dia. .010 Carbon Steel 2" Brush Length by Pferd Inc.
- Part Number: 79183470
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Brush for brushing valve guides. High brush stiffness for aggressive cleaning. Steel wire is the most common filament material. Brushes with steel wire as the filament material are ideal for work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications. Steel wire is temperature-resistant up to 600°F.
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Abrasive Wheels, Discs and Brushes
Industrial Subtype:
Abrasive Brushes
Category Level 4:
Spiral and Tube Brushes
Applications:
Cleaning
Applications 1:
Deburring
Applications 2:
Derusting
Applications 3:
Removing oxide layers
Applications 4:
Paint stripping
Applications 5:
Roughening
Country of Origin:
US
Customs Number:
9603908050
Diameter External (In):
0.50
Diameter Filament Material (In):
0.01
Diameter Shank:
1/4 Inch
Drive Types:
Flexible shaft drive
Drive Types 1:
Manual application
Drive Types 2:
Power drill
EDP:
83470
Filament Material:
Steel wire (ST)
Item Length (inches):
10.00
Item Quantity:
10
Item Weight (kgs):
0.058
MANUFACTURER_TYPE_DESCR:
1/2" VALVE GUIDE BRUSH .010CS
Materials that can be worked:
Cast iron
Materials that can be worked 1:
Cast steel
Materials that can be worked 2:
Thermosetting plastics
Materials that can be worked 3:
Steel, cast steel
Materials that can be worked 4:
Steel materials with a hardness > 54 HRC
Materials that can be worked 5:
Steels up to 370 HV (< 38 HRC)
Materials that can be worked 6:
Thermoplastics
Materials that can be worked 7:
Wood
Mounting System:
Shank
Optimum RPM:
500 - 2500 RPM
Order Quanityt:
60
Prop 65:
View
Safety notes:
For safe use, guide the brush into the workpiece before beginning work.
Safety notes 1:
When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
UNSPNC:
27113002
Manufactured By:
Pferd Inc.
Other Details
Creates fine surfaces.
Includes knurled handle for manual use.
Long service life through use of PFERD special wire.
The metal sleeve construction enables stable operation without bending.
