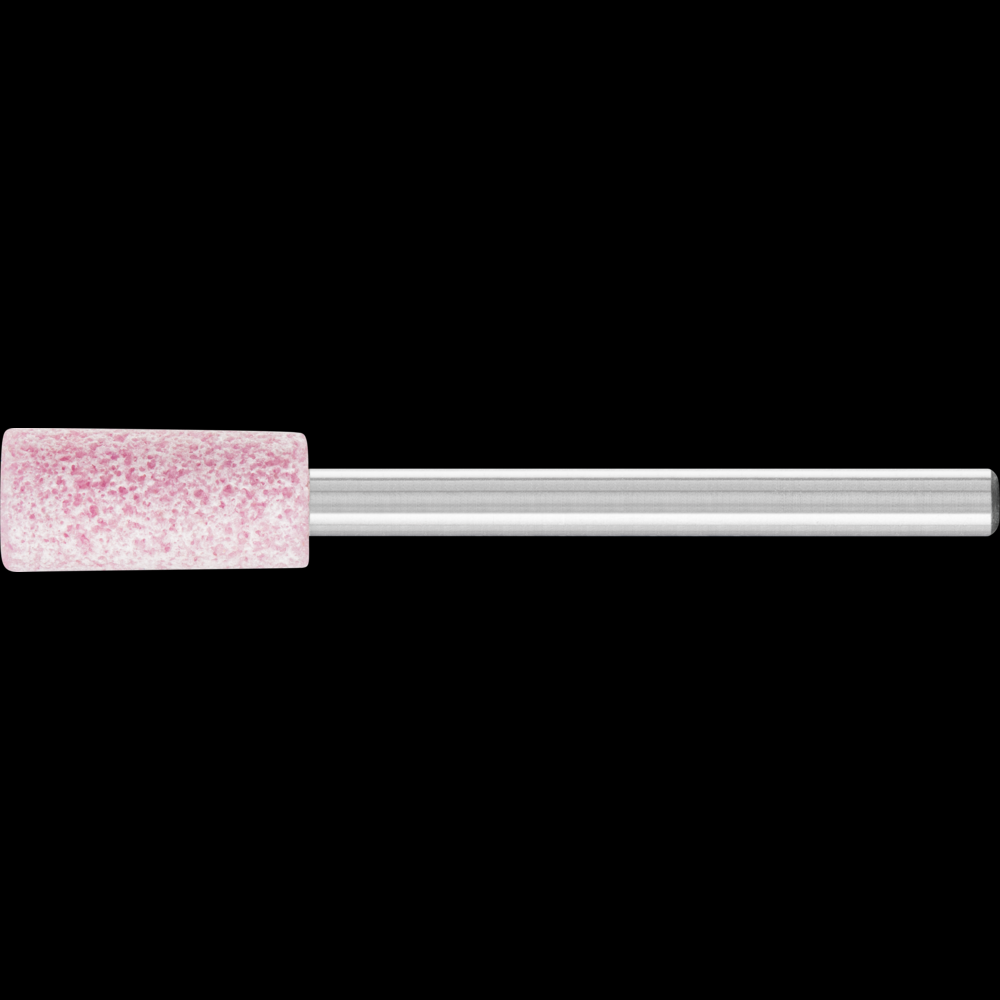

PFERD Vitrified Mounted Point, STEEL EDGE, 1/4" x 1/2, 60 Grit, W163, AO, 1/8" Shank

PFERD Vitrified Mounted Point, STEEL EDGE, 1/4" x 1/2, 60 Grit, W163, AO, 1/8" Shank by Pferd Inc.

  • Part Number: 39101535
  • UPC: 04007220395899
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
The STEEL EDGE type is ideal for edge grinding and deburring work on steel and cast steel components. Its applications also include grinding of chamfers in preparation for weld seams and grinding of contours. The cylindrical shape is ideal for grinding bores, radii and contours.
Specifications
Details
Industrial Category:
Abrasives
Industrial Subcategory:
Polishing, Finishing and Conditioning
Industrial Subtype:
Mounted Points
Applications:
Deburring
Applications 1:
Finishing
Applications 2:
Grinding out
Applications 3:
Grouting
Applications 4:
Leveling
Applications 5:
Surface work
Applications 6:
Work on weld seams
Applications 7:
Working on edges (chamfering, rounding)
Country of Origin:
US
Customs Number:
6804226000
Diameter External (In):
0.25
Diameter Shank:
1/8 Inch
Drive Types:
Flexible shaft drive
Drive Types 1:
Straight grinder
EAN:
4007220395899
EDP:
33338
Grit Size:
60
Item Quantity:
10
Item Weight (kgs):
0.004
MANUFACTURER_TYPE_DESCR:
W 163 3,1 AR 60 O 5V STEEL EDGE
Materials that can be worked:
Cast steel
Materials that can be worked 1:
Steel
Max. 1-2 Inch Overhang (RPM):
60000
Optimum 1-2 Inch Overhang (RPM):
60000
Order Quanityt:
1270
Prop 65:
View
Recommendations for use:
STEEL EDGE mounted points perform best at a peripheral speed of 5,000-7,800 SFPM.
Rpm Max. 1 Inch Overhang (RPM):
38020
Safety notes:
The maximum permitted rotational speed relates to the unsupported shank length of 1/2".
Shank Length:
1.25
Shape:
W 163
UNSPNC:
23131500
UPC Code:
97758333382
Manufactured By:
Pferd Inc.
Other Details
Cost-effective due to high edge stability, even on low-speed power tools.
Ideal for work on edges.
Long service life and low wear due to hard, dimensionally stable bond.
