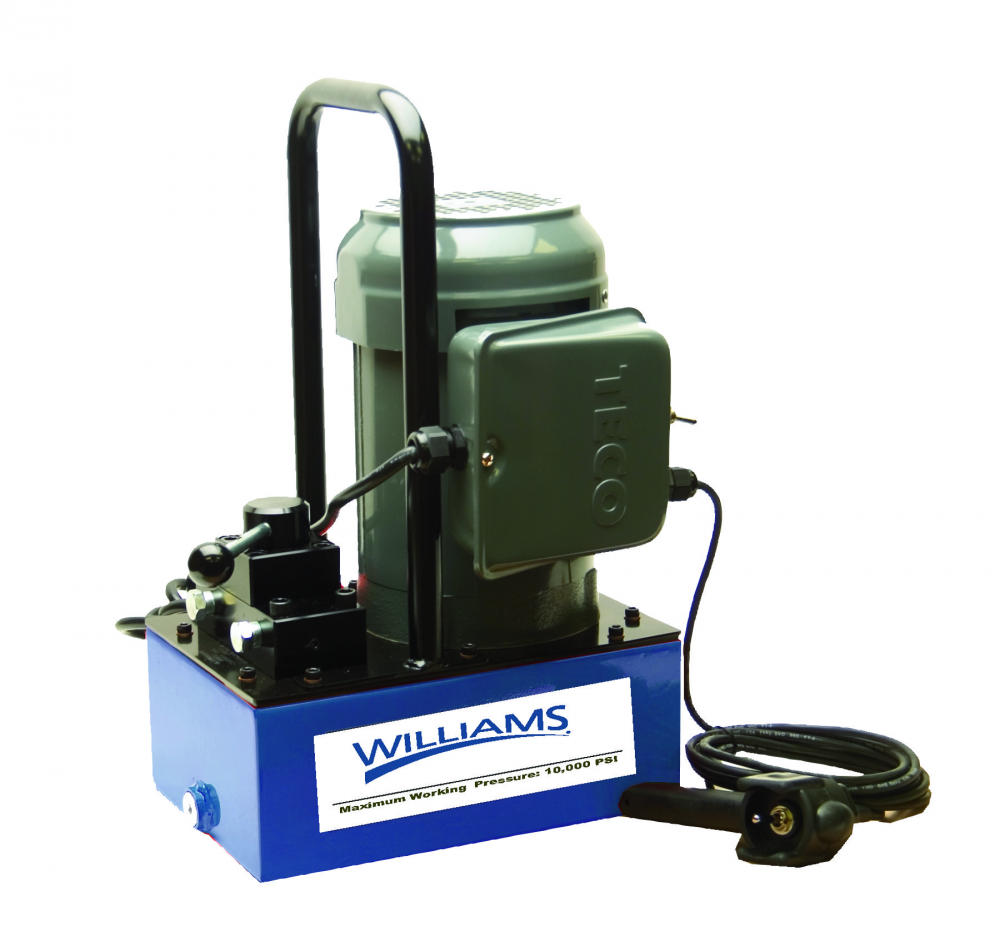

1.5 H.P. 3 Gallon Electric Pump by Williams
- Part Number: JHW5E15H3G
- UPC: 00662459923417
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
1.5 H.P. 3 Gallon Electric Pump
Specifications
Details
Industrial Category:
Hydraulics
Industrial Subcategory:
Pumps
Industrial Subtype:
Electric Hydraulic Pumps
Country of Origin:
Taiwan
Current Draw:
17 amps
Dimensions (in), C:
19.72
Dimensions (in), D:
7.24
Dimensions (in), E:
8.19
Dimensions (in), F:
10.51
Dimensions (in), G:
4.53
Dimensions (in), H:
12.36
Dimensions, A (in):
16.65
Dimensions, B (in):
12.01
Max. Output Pressure:
10,000 psi
Motor Size:
1.5 hp
Motor Voltage:
115 volts
OG1 Page:
409
Oil Output Flow Rate, 1st Stage, (in3):
470
Oil Output Flow Rate, 2nd Stage, (in3):
61
Product Code with Remote Control Pendant Switch:
5E15H3GR
Sound Level, (dBA):
80
Usable Oil Capacity:
3 gal
Valve Function:
Advance Hold Return
Valve Type:
4-way, 3-pos.
Manufactured By:
Williams
Other Details
2 speed operation allows for faster cylinder advance
Designed to minimize the number of moving parts and maximize overall pump efficiency
Full load starting capacities
Ideal for on site construction as well as maintenance
Internal filter keeps contamination from damaging pump
Precision components to minimize wear and improve overall dependability
Quiet operation meets OSHA regulations (80dBA)
Rugged durable design meets the demands of industrial applications
